turning center

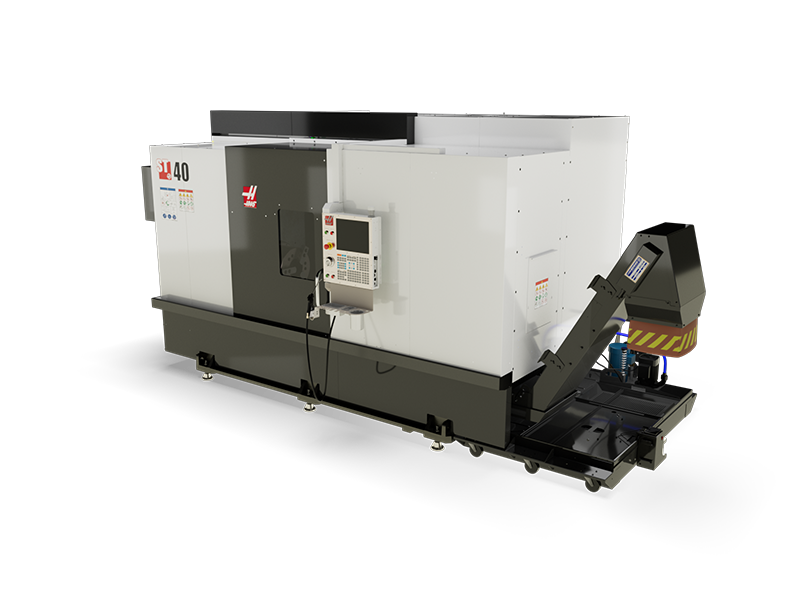

HAAS ST-40-R (2017)
| CAPACITIES | S.A.E | METRIC |
|---|---|---|
| Chuck Size | 15.0 in | 381 mm |
| Max Part Swing | 35.5 in | 902 mm |
| Max Cutting Diameter (with BOT turret) | 30.00 in | 762 mm |
| Max Cutting Diameter (with BMT75 turret) | NA | NA |
| Max Cutting Length (varies with work holding) | 44.0 in | 1118 mm |
| Bar Capacity | 4.00 in | 102 mm |
| TRAVELS | S.A.E | METRIC |
|---|---|---|
| X Axis | 20.00 in | 508 mm |
| Z Axis | 44.00 in | 1118 mm |
| FEEDRATES | S.A.E | METRIC |
|---|---|---|
| Rapids on X | 710 ipm | 18.0 m/min |
| Rapids on Z | 710 ipm | 18.0 m/min |
| AXIS MOTORS | S.A.E | METRIC |
|---|---|---|
| Max Thrust X | 5500 lbf | 24465 N |
| Max Thrust Z | 9000 lbf | 40034 N |
| SPINDLE | S.A.E | METRIC |
|---|---|---|
| Spindle Nose | A2-8 | A2-8 |
| Drive System | 2-Speed Gearbox | 2-Speed Gearbox |
| Max Rating | 40.0 hp | 29.8 kW |
| Max Speed | 2400 rpm | 2400 rpm |
| Max Torque | 1400.0 ft-lbf @ 150 rpm | 1898.0 Nm @ 150 rpm |
| Spindle Bore ø | 4.62 in | 117.3 mm |
| XP OPTION | S.A.E | METRIC |
|---|---|---|
| Drive System | 2-Speed Gearbox | 2-Speed Gearbox |
| Max Rating | 55.0 hp | 41.0 kW |
| Max Speed | 2400 rpm | 2400 rpm |
| Max Torque | 2100.0 ft-lbf @ 150 rpm | 2847.0 Nm @ 150 rpm |
| Input AC Voltage (3 Phase) - Low | 220 VAC | 220 VAC |
| Full Load Amps (3 Phase) - Low | 105 A | 105 A |
| Input AC Voltage (3 Phase) - High* | 440 VAC | 440 VAC |
| Full Load Amps (3 Phase) - High* | 53 A | 53 A |
| TAILSTOCK | S.A.E | METRIC |
|---|---|---|
| Taper | MT5 | MT5 |
| Travel | 42 in | 1,067 mm |
| Max Thrust (Acme) | 3,000 lbf | 13,345 N |
| Min Thrust (Acme) | 100 lbf | 445 N |
| TURRET | S.A.E | METRIC |
|---|---|---|
| Number of Tools | 12-Station BOT | 12-Station BOT |
| OD vs ID Tools | Any Combination (will vary with turret) | Any Combination (will vary with turret) |
| Boring Bar Rear Clearance (from back of turret ) | 4.50 in | 114.0 mm |
| Tooling | BOT | BOT |
| GENERAL | S.A.E | METRIC |
|---|---|---|
| Coolant Capacity | 95 gal | 360 L |
| AIR REQUIREMENTS | S.A.E | METRIC |
|---|---|---|
| Air Required | 4 scfm @ 100 psi | 113 L/min @ 6.9 bar |
| Inline Air Hose | 3/8 in | 3/8 in |
| Coupler (Air) | 3/8 in | 3/8 in |
| Air Pressure Min | 80 psi | 5.5 bar |
| ELECTRICAL SPECIFICATION | S.A.E | METRIC |
|---|---|---|
| Spindle Speed | 2400 rpm | 2400 rpm |
| Drive System | 2-Speed Gearbox | 2-Speed Gearbox |
| Spindle Power | 40.0 hp | 29.8 kW |
| Input AC Voltage (3 Phase) - Low | 220 VAC | 220 VAC |
| Full Load Amps (3 Phase) - Low | 70 A | 70 A |
| Input AC Voltage (3 Phase) - High* | 440 VAC | 440 VAC |
| Full Load Amps (3 Phase) - High* | 35 A | 35 A |
| DIMENSIONS - SHIPPING | S.A.E | METRIC |
|---|---|---|
| Domestic Pallet | 216.5 in x 94.3 in x 110.0 in | 550 cm x 240 cm x 279 cm |
| Export Pallet | 216.5 in x 98.0 in x 120.0 in | 550 cm x 249 cm x 305 cm |
| Weight, Export Crate | 21,740 lb | 9,861.0 kg |
