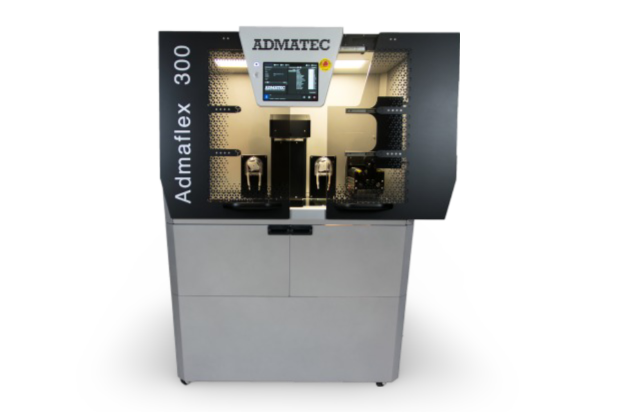

Nano Dimension - Admaflex

Quantity

Description:

Nano Dimension is a leading additive manufacturing company, specializing in 3D-printed electronics components for various industries. Their technology integrates deep learning with 3D printing and advanced AI solutions.

Specification	130	300
Technology	Digital Light Processing (DLP), Vat Photo Polymerization (VPP), Stereo Lithography based Ceramic Manufacturing (LCM), Stereo Lithography based Metal Manufacturing (LMM)
Printing Build Volume (X, Y, Z) with Lateral (Pixel) Resolution	64 × 40 × 400 mm (2.51 × 1.57 × 15.7 inches, 25 µm) 90 × 56 × 400 mm (3.54 × 2.20 × 15.7 inches, 35 µm) 102 × 64 × 400 mm (4.01 × 2.51 × 15.7 inches, 40 µm) 128 × 80 × 400 mm (5.03 × 3.14 × 15.7 inches, 50 µm)	102 × 64 × 280 mm (4.01 × 2.51 × 11 inches, 40 µm) 90 × 56 × 280 mm (3.54 × 2.20 × 11 inches, 35 µm)
Layer Thickness	10 - 200 µm	10 - 200 µm
Build Speed (layers/h)	Up to 300 layers per hour	Up to 300 layers per hour
Build Speed (mm/h)	Up to 60 mm per hour	Up to 60 mm per hour
Wall Thickness	0.1 mm to 10 mm in Al₂O₃	0.1 mm to 10 mm in Al₂O₃
Weight	Approx. 300 kg (660 lbs)	Approx. 650 kg (1433 lbs)
Required Working Temperature	22 +/- 5°C	22 ± 5°C
Required Working Humidity	< 40% (in standard configuration)	< 40% (in standard configuration)
Connectivity	Ethernet, USB	Ethernet, USB
Power Requirements	110 / 230 V, 6 A	110 / 230 V
File Compatibility	SLC, STL	SLC, STL
Final Product Density	Technical Ceramics: > 98.5% - 99.8%* Metals: > 96 - 99%* Depending on sintering curve	Technical Ceramics: > 98.5% - 99.8%* Metals: > 96 - 99%* Depending on sintering curve
